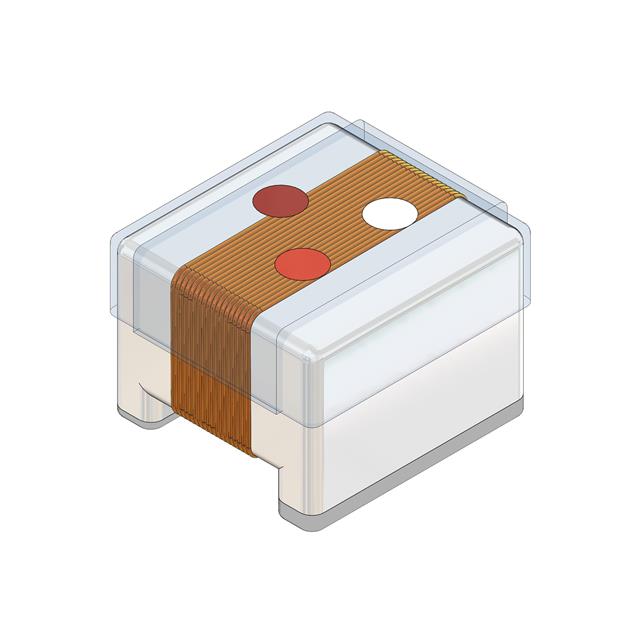

| Part number: | WCI2520CPR33GDG |
| Description: | CHIP IND 2520,330NH,G,45Q,0.45A, |
| Manufacturer | INPAQ Technology Co., Ltd. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "INPAQ Technology Co., Ltd." |
| Tolerance | ±2% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -25°C ~ 125°C |
| DC Resistance (DCR) | 1.05Ohm Max |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 570MHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 25 MHz |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Inductance | 330 nH |
| Current Rating (Amps) | 450 mA |
|
