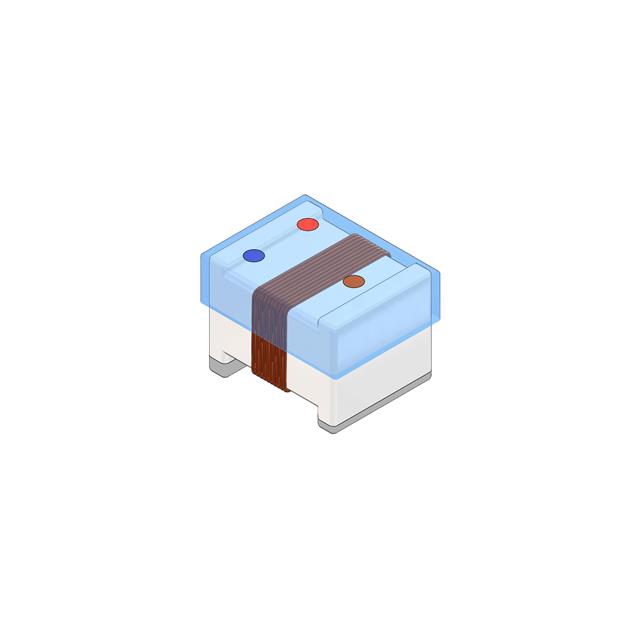

| Part number: | WCI4532CPR33GDG |
| Description: | CHIP IND 4532,330NH,G,80Q,0.85A, |
| Manufacturer | INPAQ Technology Co., Ltd. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 600 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "INPAQ Technology Co., Ltd." |
| Tolerance | ±2% |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.195" L x 0.150" W (4.95mm x 3.81mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -25°C ~ 125°C |
| DC Resistance (DCR) | 135mOhm Max |
| Q @ Freq | 80 @ 50MHz |
| Frequency - Self Resonant | 600MHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 50 MHz |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.135" (3.43mm) |
| Inductance | 330 nH |
| Current Rating (Amps) | 850 mA |
|
