| Part number: | WIP201610S-R24MLDG |

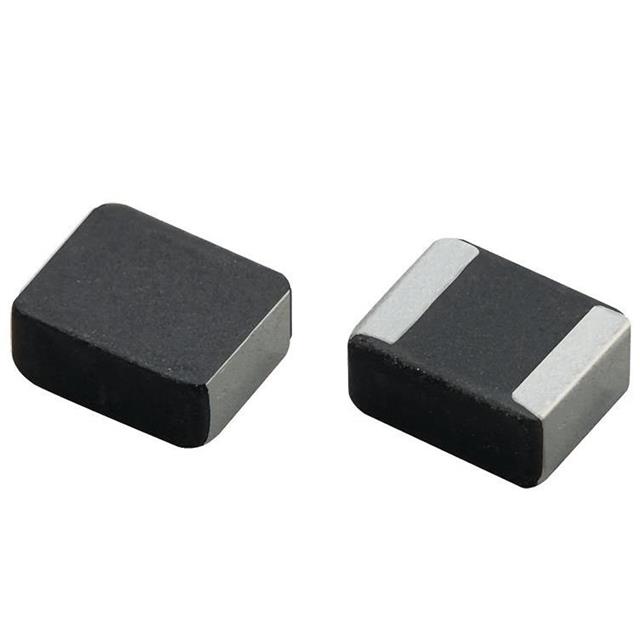

| Description: | POWER INDUCTOR 2016 0.24UH 20% D |
| Manufacturer | INPAQ Technology Co., Ltd. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "INPAQ Technology Co., Ltd." |
| Tolerance | ±20% |
| Package / Case | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 20mOhm Max |
| Frequency - Self Resonant | 120MHz |
| Current - Saturation (Isat) | 6.3A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 0806 |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Inductance | 240 nH |
| Current Rating (Amps) | 5.3 A |
|
