| Part number: | LM2105DR |
| Description: | 105-V 0.5-A/0.8-A HALF-BRIDGE GA |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Features | Bootstrap Circuit |

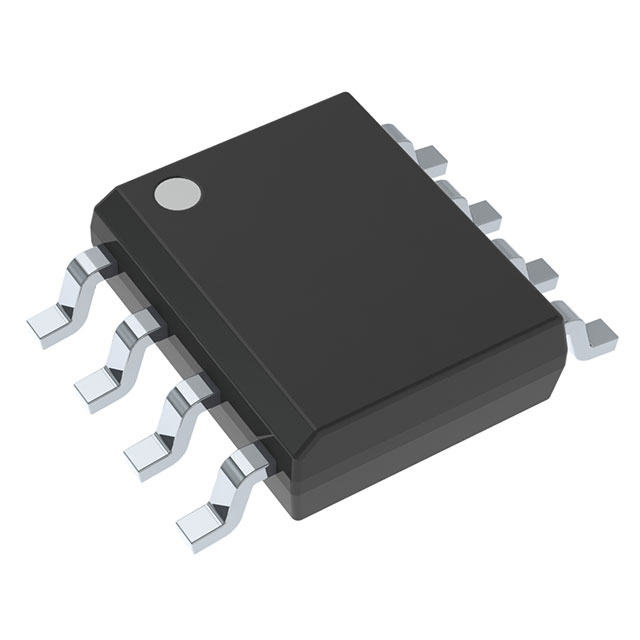

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 5V ~ 18V |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 800mA |
| Technology | NMOS |
| Supplier Device Package | 8-SOIC |
| Fault Protection | UVLO |
| Load Type | Capacitive |
|
