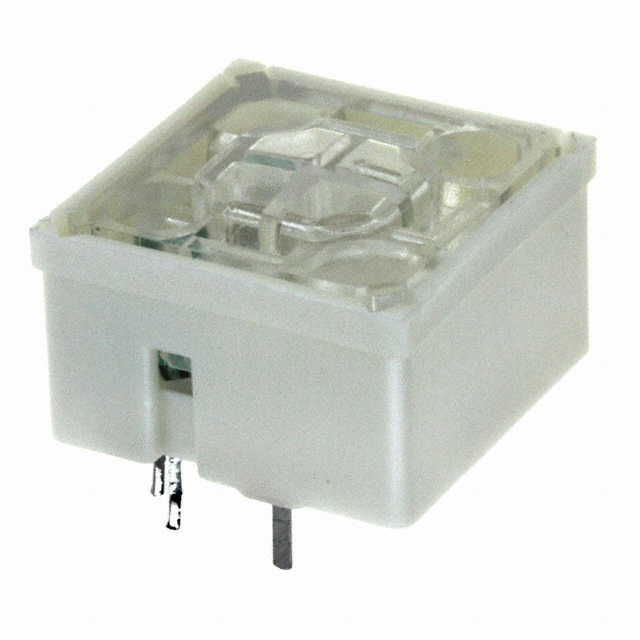

| Part number: | 3.14.100.042/0000 |
| Description: | SWITCH TACTILE SPST-NO 0.25A 35V |
| Manufacturer | RAFI |
| Encapsulation | Tube |
| Quantity | 32 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RAFI" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination Type, Color | LED, Green |
| Illumination | Illuminated |
| Contact Rating @ Voltage | 0.25A @ 35VAC/DC |
| Actuator Type | Square Button |
| Operating Force | 296gf |
| Outline | 15.00mm x 15.00mm |
| Actuator Height off PCB, Vertical | 9.70mm |
| Actuator Orientation | Top Actuated |
|
