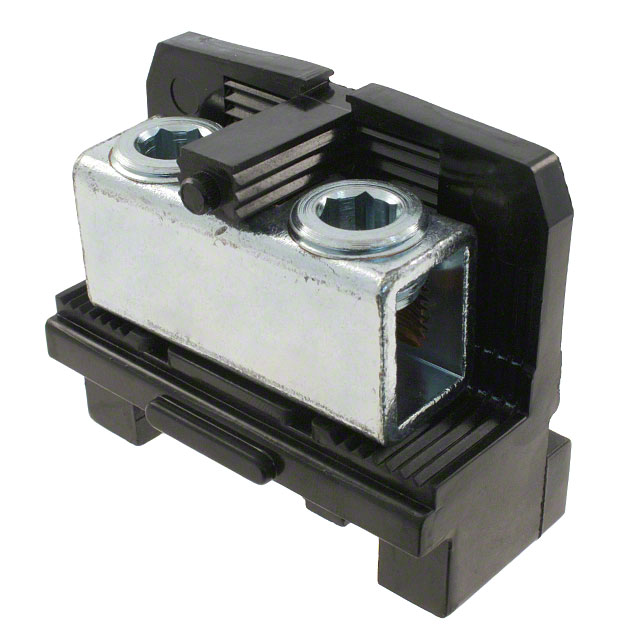

| Part number: | 1437396-5 |
| Description: | TERM BLK NEMA 2POS BLACK |
| Manufacturer | TE Connectivity AMP Connectors |
| Encapsulation | Bulk |
| Quantity | 6 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity AMP Connectors" |
| Mounting Type | Direct Mount |
| Length | 3.010" (76.45mm) |
| Type | NEMA Open Construction |
| Operating Temperature | 150°C |
| Termination Style | Tubular Screw |
| Material - Insulation | Phenol Formaldehyde (Phenolic) |
| Material Flammability Rating | UL94 V-1 |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 250MCM (kcmil)-6 AWG |
| Height (Max) | 2.510" (63.75mm) |
| Housing Color | Black |
| Stripping Length | 25mm |
| Current - UL | 225 A |
| Voltage - UL | 600 V |
| Number of Positions | 2 |
|
