| Part number: | 08743.15MRET1P |

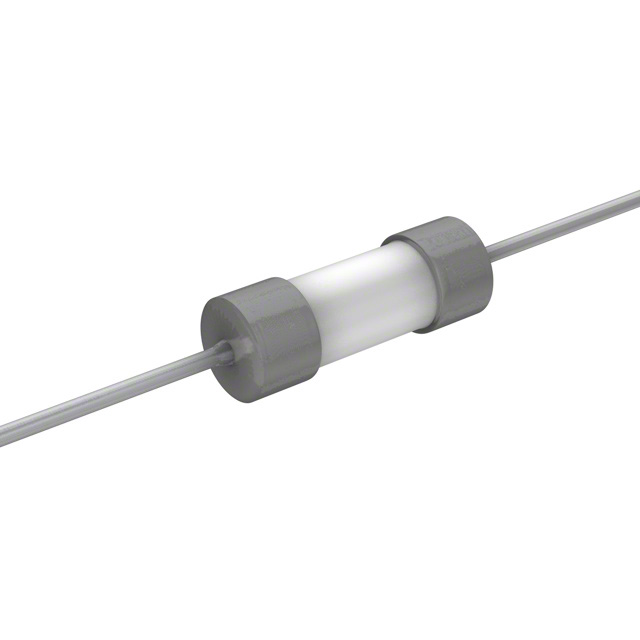

| Description: | FUSE CERAMIC 3.15A 250VAC AXIAL |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Size / Dimension | 0.142" Dia x 0.394" L (3.60mm x 10.00mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | cULus |
| DC Cold Resistance | 0.0216 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 3.15 A |
| Voltage Rating - AC | 250 V |
| Melting I²t | 5.904 |
|
