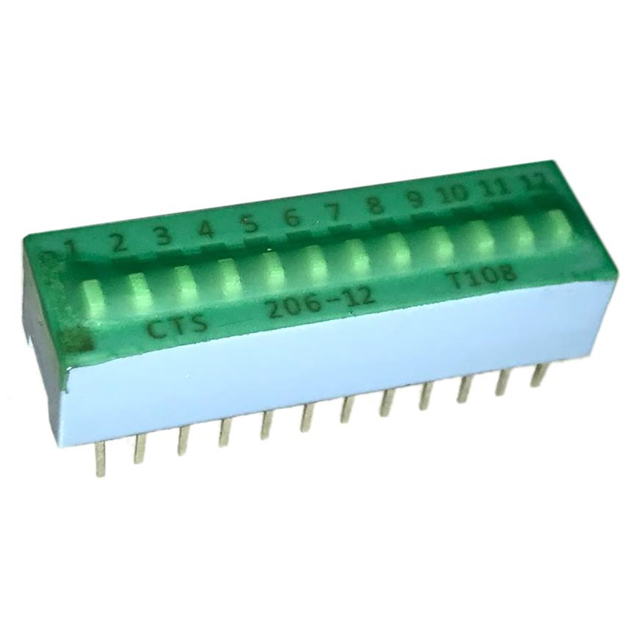

| Part number: | 206-12ST |
| Description: | SWITCH SLIDE DIP SPST 0.05A 24V |
| Manufacturer | CTS Corporation |
| Encapsulation | Tube |
| Quantity | 15 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CTS Corporation" |
| Features | Epoxy Sealed Terminals, Tape Seal |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Current Rating (Amps) | 50mA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -55°C ~ 85°C |
| Termination Style | PC Pin |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.334" (8.48mm) |
| Actuator Level | Raised |
| Washable | Yes |
| Number of Positions | 12 |
|
