| Part number: | VPT48-10400 |

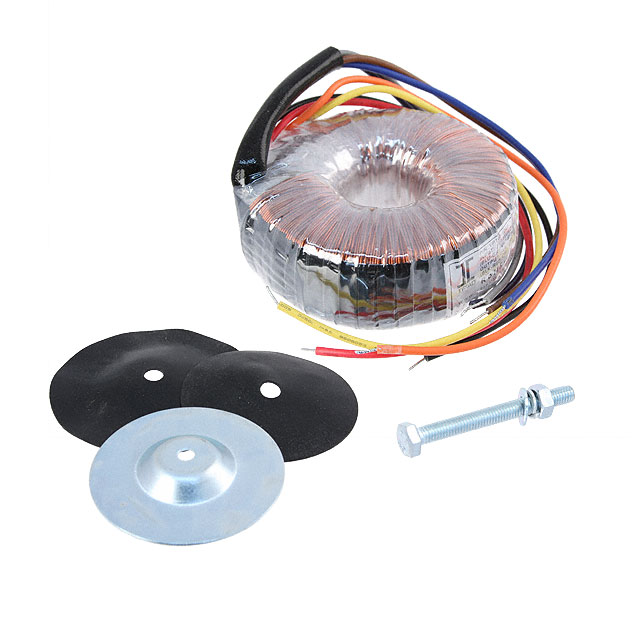

| Description: | PWR XFMR TOROIDAL 500VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 140.00mm Dia x 60.00mm W |
| Mounting Type | Chassis Mount |
| Type | Toroidal |
| Weight | 9.3 lbs (4.2 kg) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 500VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 20.8A, Series 10.4A |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 66.0mm |
| Voltage - Secondary (Full Load) | Parallel 24V, Series 48V |
| Center Tap | No |
|
