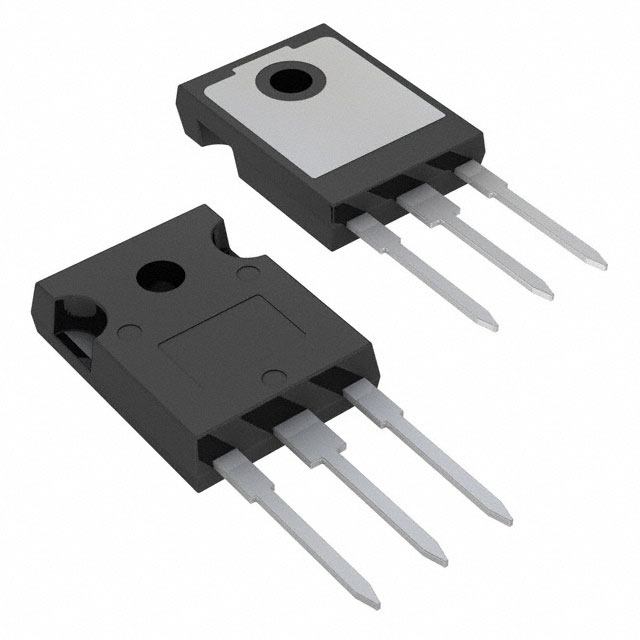

| Part number: | IRG4PC50FD-EPBF |
| Description: | IGBT 600V 70A 200W TO247AD |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 400 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 50 ns |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 39A |
| Supplier Device Package | TO-247AC |
| Td (on/off) @ 25°C | 55ns/240ns |
| Switching Energy | 1.5mJ (on), 2.4mJ (off) |
| Test Condition | 480V, 39A, 5Ohm, 15V |
| Gate Charge | 190 nC |
| Current - Collector (Ic) (Max) | 70 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 280 A |
| Power - Max | 200 W |
|
