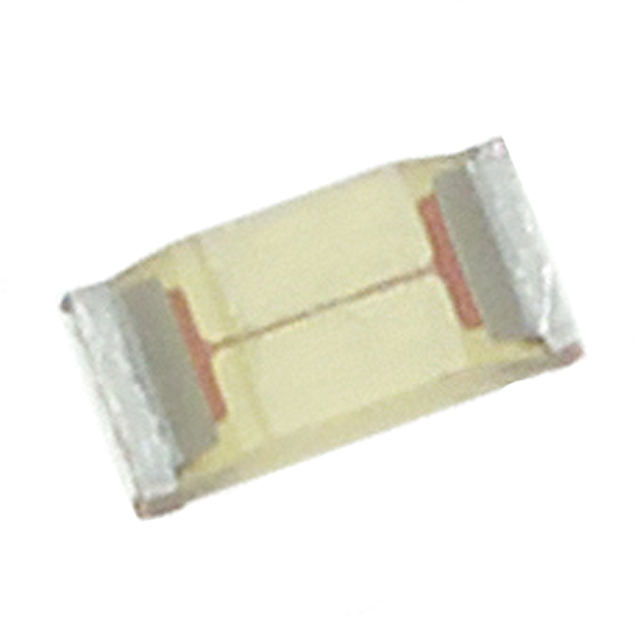

| Part number: | 0429.750WRM |
| Description: | FUSE BOARD MOUNT 750MA 63VAC/VDC |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.125" L x 0.060" W x 0.045" H (3.18mm x 1.52mm x 1.14mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 90°C |
| Response Time | Fast Blow |
| Approval Agency | CSA, UL |
| DC Cold Resistance | 0.137 Ohms |
| Current Rating (Amps) | 750 mA |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 63 V |
| Melting I²t | 0.017 |
|
