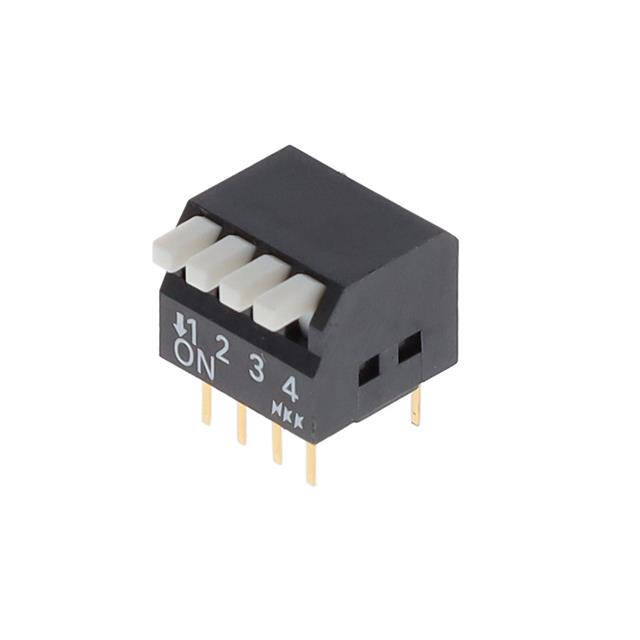

| Part number: | JS0304PP4-S |
| Description: | SWITCH PIANO DIP SPST 0.025A 24V |
| Manufacturer | NKK Switches |
| Encapsulation | Tube |
| Quantity | 44 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NKK Switches" |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Current Rating (Amps) | 25mA |
| Mounting Type | Through Hole, Right Angle |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Actuator Type | Piano |
| Height Above Board | 0.362" (9.20mm) |
| Actuator Level | Raised |
| Washable | No |
| Contact Material | Phosphor Bronze |
| Number of Positions | 4 |
|
