| Part number: | 63915055721 |
| Description: | CBL RIBN 50COND 0.025 GRAY 250' |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Spool |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Length | 250.0' (76.20m) |
| Wire Gauge | 30 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Pitch | 0.025" (0.64mm) |
| Operating Temperature | -25°C ~ 105°C |
| Number of Conductors | 50 |

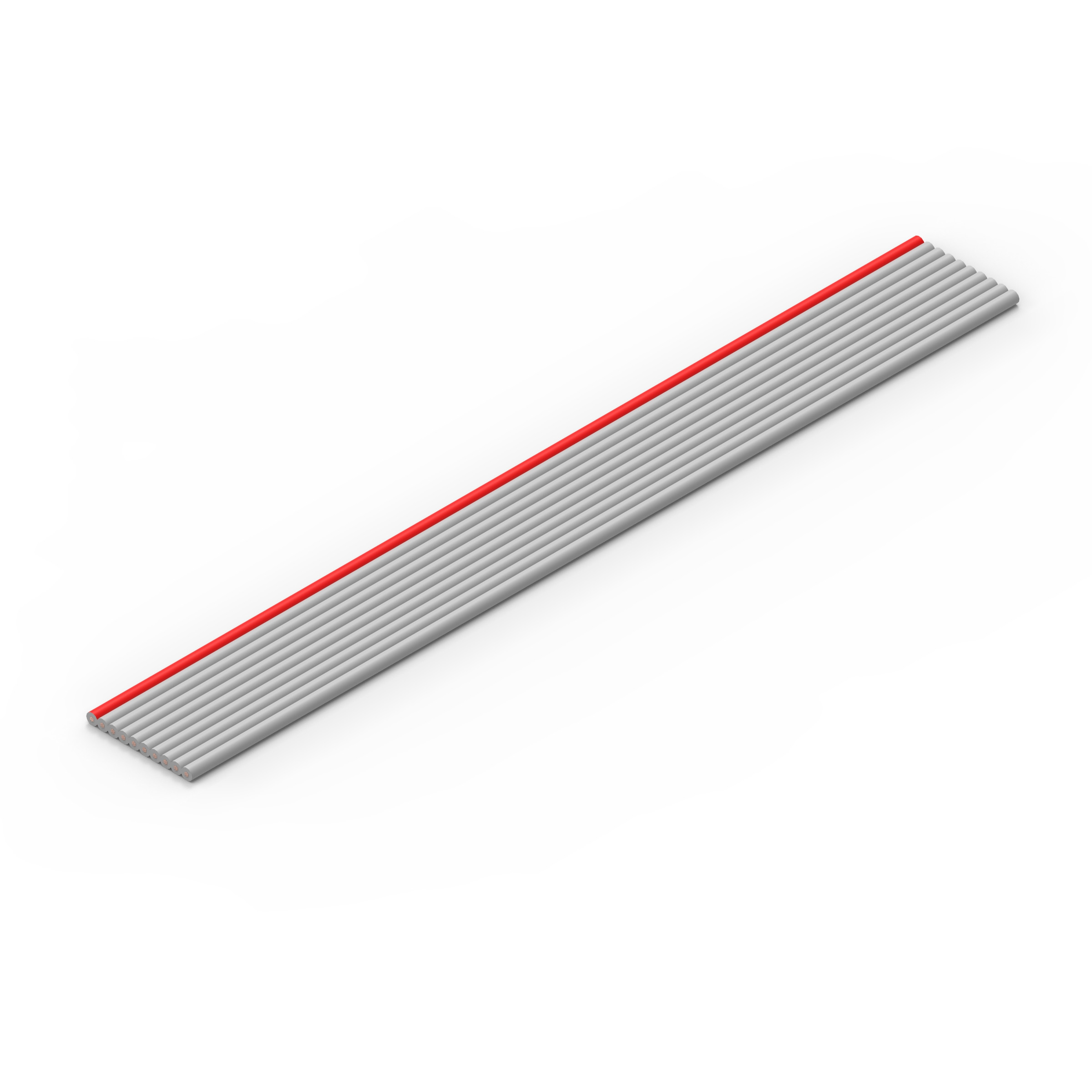

| Cable Type | Flat Cable |
| Conductor Material | Copper |
| Jacket Color | Gray |
| Insulation Resistance | 1GOhms |
| Ribbon Thickness | 0.026" (0.66mm) |
| Ribbon Width | 1.250" (31.75mm) |
| First Conductor Mark | Red |
| Current Rating (Amps) | 1 A |
| Voltage | 150 V |
|
