TYPE	DESCRIPTION
Mfr	"Littelfuse / IXYS RF"

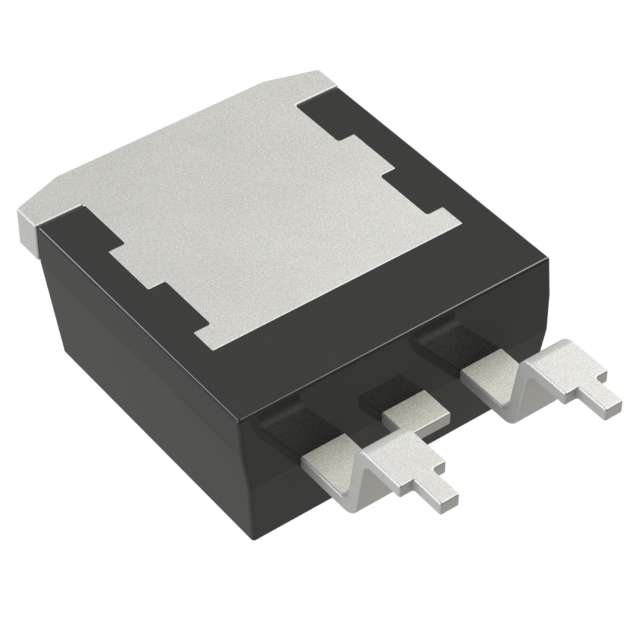

Package / Case	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Input Type	Standard
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 20A
Supplier Device Package	TO-263AA
Td (on/off) @ 25°C	15ns/150ns
Switching Energy	150µJ (on), 700µJ (off)
Test Condition	480V, 20A, 10Ohm, 15V
Gate Charge	90 nC
Current - Collector (Ic) (Max)	40 A
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector Pulsed (Icm)	80 A
Power - Max	150 W
