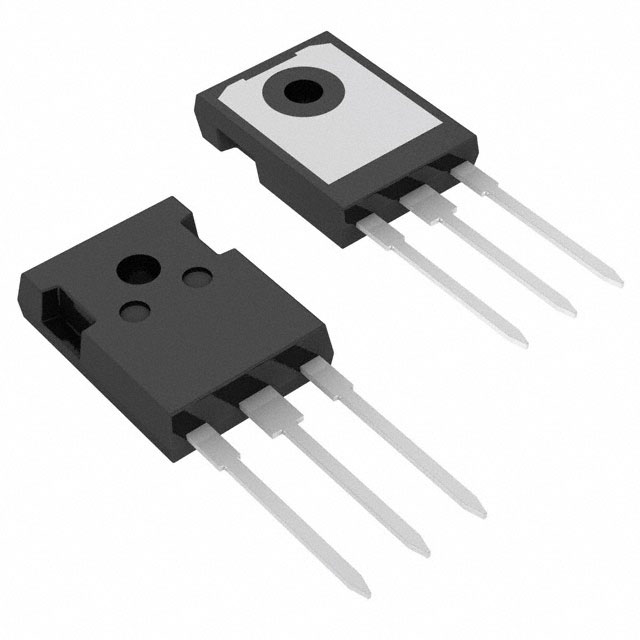

| Part number: | IXGH15N120B2D1 |
| Description: | IGBT 1200V 30A 192W TO247AD |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 165 ns |
| Vce(on) (Max) @ Vge, Ic | 3.3V @ 15V, 15A |
| Supplier Device Package | TO-247AD |
| Td (on/off) @ 25°C | 25ns/165ns |
| Switching Energy | 1.4mJ (off) |
| Test Condition | 960V, 15A, 10Ohm, 15V |
| Gate Charge | 86 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 60 A |
| Power - Max | 192 W |
|
