| Part number: | IXGP15N120C |
| Description: | IGBT 1200V 30A 200W TO220AB |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |

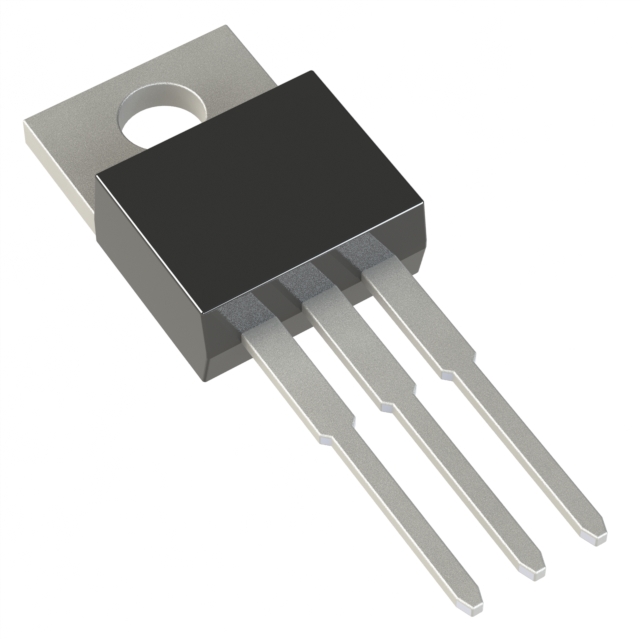

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 3.8V @ 15V, 15A |
| Supplier Device Package | TO-220-3 |
| Td (on/off) @ 25°C | 25ns/150ns |
| Switching Energy | 1.05mJ (off) |
| Test Condition | 960V, 15A, 10Ohm, 15V |
| Gate Charge | 86 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 60 A |
| Power - Max | 200 W |
|
