| Part number: | IXGT32N60C |

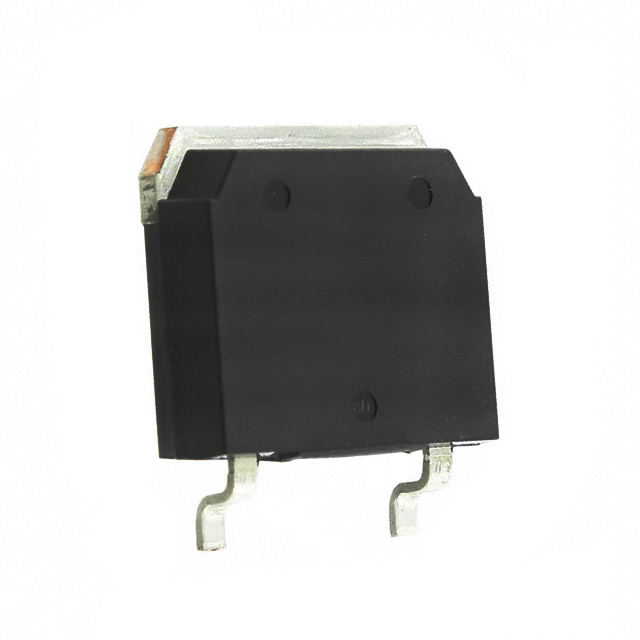

| Description: | IGBT 600V 60A TO268AA |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 32A |
| Supplier Device Package | TO-268AA |
| Td (on/off) @ 25°C | 25ns/85ns |
| Switching Energy | 320µJ (off) |
| Test Condition | 480V, 32A, 4.7Ohm, 15V |
| Gate Charge | 110 nC |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 200 W |
|
