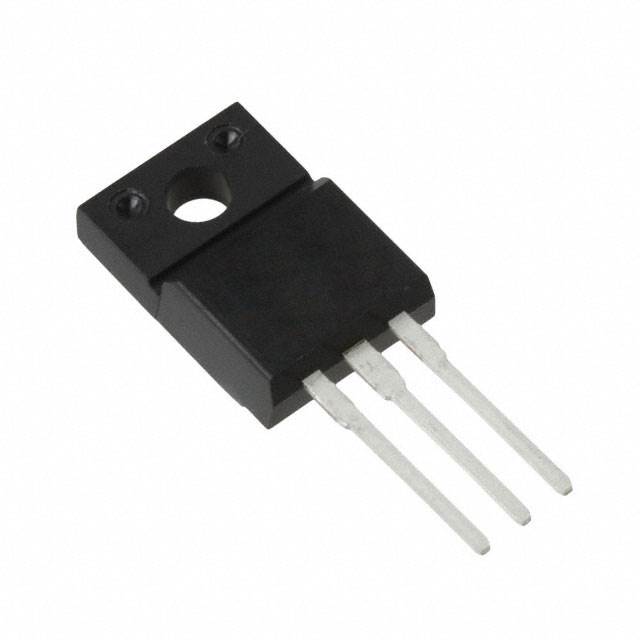

| Part number: | IRGI4056DPBF |
| Description: | IGBT 600V 18A 34W TO220FP |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 72 ns |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 9A |
| Supplier Device Package | TO-220AB Full-Pak |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 34ns/84ns |
| Switching Energy | 59µJ (on), 177µJ (off) |
| Test Condition | 400V, 9A, 22Ohm, 15V |
| Gate Charge | 25 nC |
| Current - Collector (Ic) (Max) | 18 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 27 A |
| Power - Max | 34 W |
|
