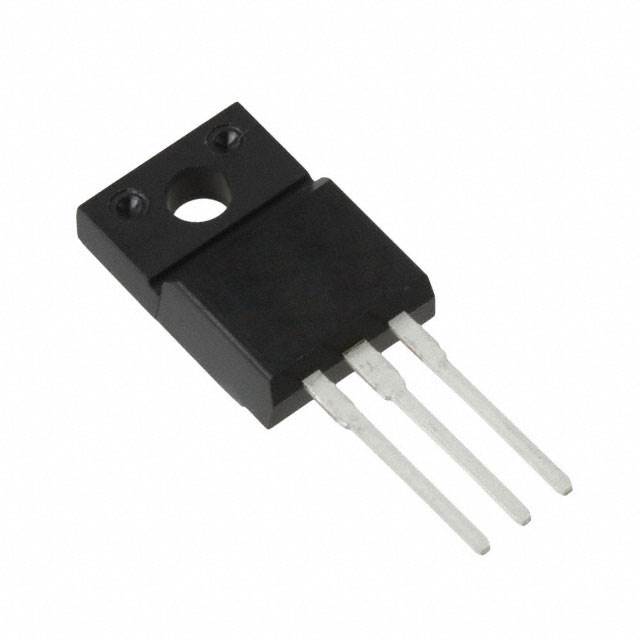

| Part number: | IRGI4064DPBF |
| Description: | IGBT 600V 15A 38W TO220 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 48 ns |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 8A |
| Supplier Device Package | TO-220AB Full-Pak |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 29ns/84ns |
| Switching Energy | 20µJ (on), 125µJ (off) |
| Test Condition | 400V, 8A, 22Ohm, 15V |
| Gate Charge | 21 nC |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 24 A |
| Power - Max | 38 W |
|
