| Part number: | 3413.0002.26 |

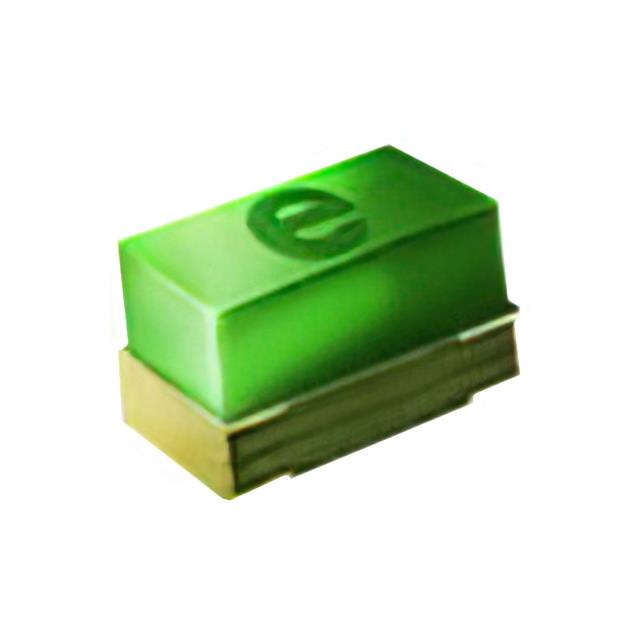

| Description: | USFF 1206 FUSE FF 50MA |
| Manufacturer | SCHURTER |
| Encapsulation | Bulk |
| Quantity | 10000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "SCHURTER" |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 90°C |
| Response Time | Fast Blow |
| Approval Agency | CE, CSA, cURus, UKCA, UL |
| DC Cold Resistance | 8.35 Ohms |
| Breaking Capacity @ Rated Voltage | 10A AC, 100A DC |
| Current Rating (Amps) | 50 mA |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 63 V |
| Melting I²t | 0.0002 |
|
