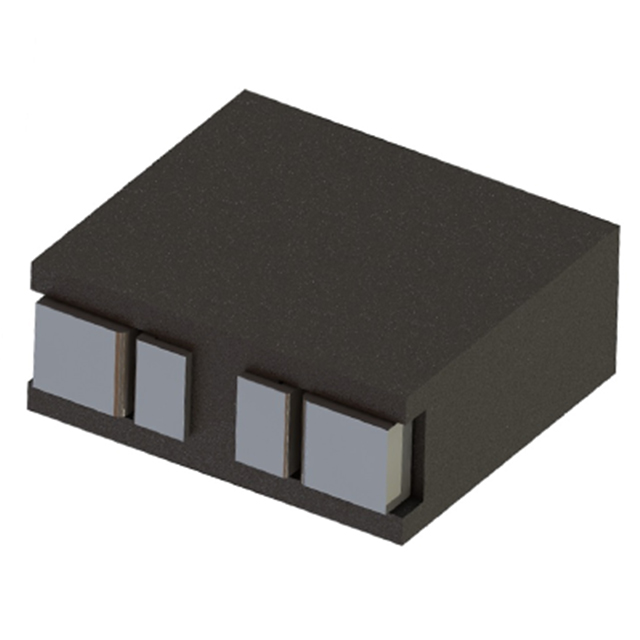

| Part number: | SMF110511R10LZF |
| Description: | TLVR (L11.7XW5.7XH11) 105NH |
| Manufacturer | Superworld Electronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Superworld Electronics" |
| Tolerance | ±15% |
| Package / Case | Nonstandard, 4 Lead |
| Size / Dimension | 0.461" L x 0.224" W (11.70mm x 5.70mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 0.125mOhm |
| Current - Saturation (Isat) | 125A |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | Nonstandard, 4 Lead |
| Height - Seated (Max) | 0.441" (11.20mm) |
| Inductance | 105 nH |
| Current Rating (Amps) | 77 A |
|
