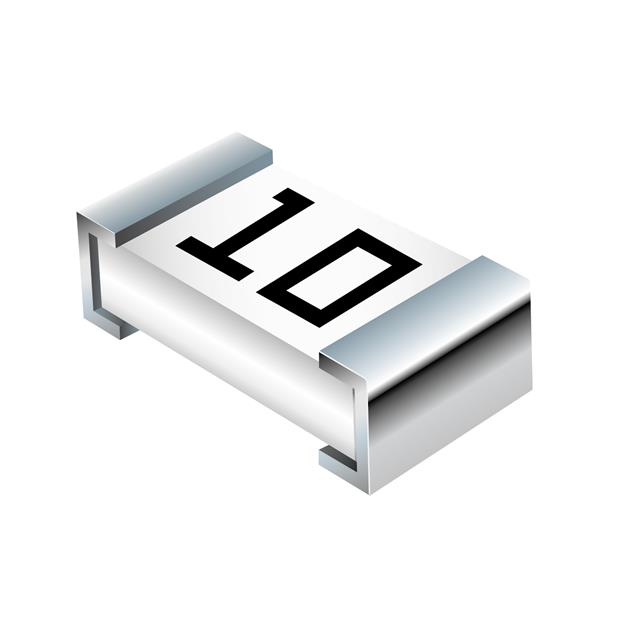

| Part number: | SF-1206HHA2500R-2 |
| Description: | FUSE SMD 50V 25A AUTO |
| Manufacturer | J.W. Miller / Bourns |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "J.W. Miller / Bourns" |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.065" W x 0.047" H (3.20mm x 1.65mm x 1.20mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Approval Agency | AEC-Q200, cUL, UL |
| DC Cold Resistance | 0.0013 Ohms |
| Breaking Capacity @ Rated Voltage | 200A |
| Current Rating (Amps) | 25 A |
| Voltage Rating - AC | 50 V |
| Voltage Rating - DC | 50 V |
| Melting I²t | 171.7 |
|
