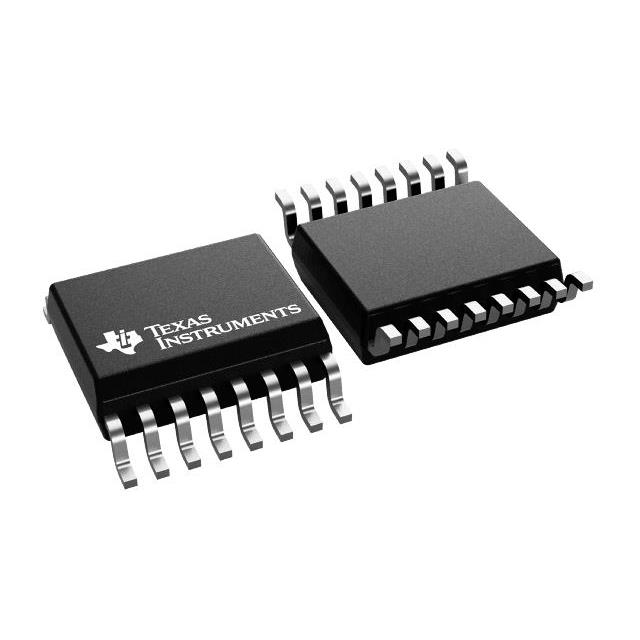

| Part number: | V62/21610-01XE |
| Description: | RADIATION TOLERANT QUAD-CHANNEL, |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | CAN, RS422, RS485, SPI |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2.25V ~ 5.5V |
| Data Rate | 100Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 3000Vrms |
| Inputs - Side 1/Side 2 | 3/1 |
| Supplier Device Package | 16-SSOP |
| Rise / Fall Time (Typ) | 2.4ns, 2.4ns |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 4.9ns |
| Number of Channels | 4 |
|
