Part number: | SN74LV4T32QWBQARQ1 |
Description: | IC GATE OR 4CH 2-INP 14WQFN |
Manufacturer | Texas Instruments |
Encapsulation | Tape & Reel (TR) |
Quantity | 3000 |
RoHS | 1 |
TYPE | DESCRIPTION |
Mfr | "Texas Instruments" |

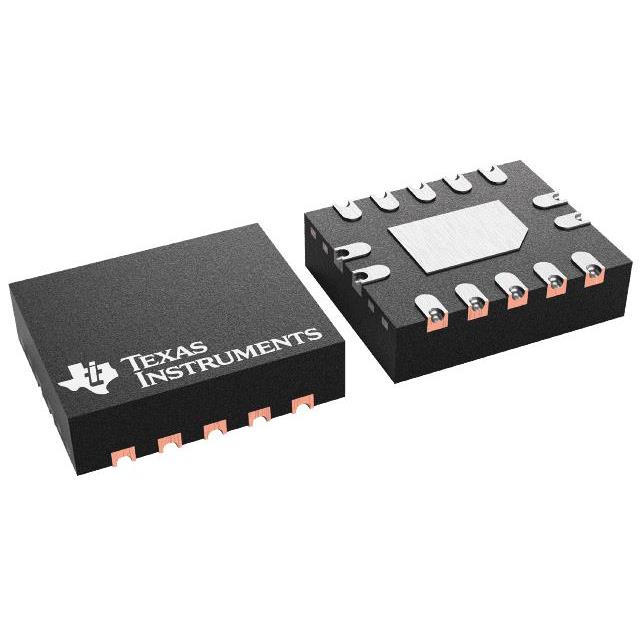

Package / Case | 14-WFDFN Exposed Pad |
Mounting Type | Surface Mount, Wettable Flank |
Logic Type | OR Gate |
Operating Temperature | -40°C ~ 125°C |
Voltage - Supply | 1.6V ~ 5.5V |
Current - Output High, Low | 8mA, 8mA |
Number of Inputs | 2 |
Supplier Device Package | 14-WQFN (3x2.5) |
Input Logic Level - High | 1.1V ~ 2V |
Input Logic Level - Low | 0.5V ~ 0.85V |
Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
Grade | Automotive |
Number of Circuits | 4 |
Current - Quiescent (Max) | 2 µA |
Qualification | AEC-Q100 |
