| Part number: | 2332208-5 |

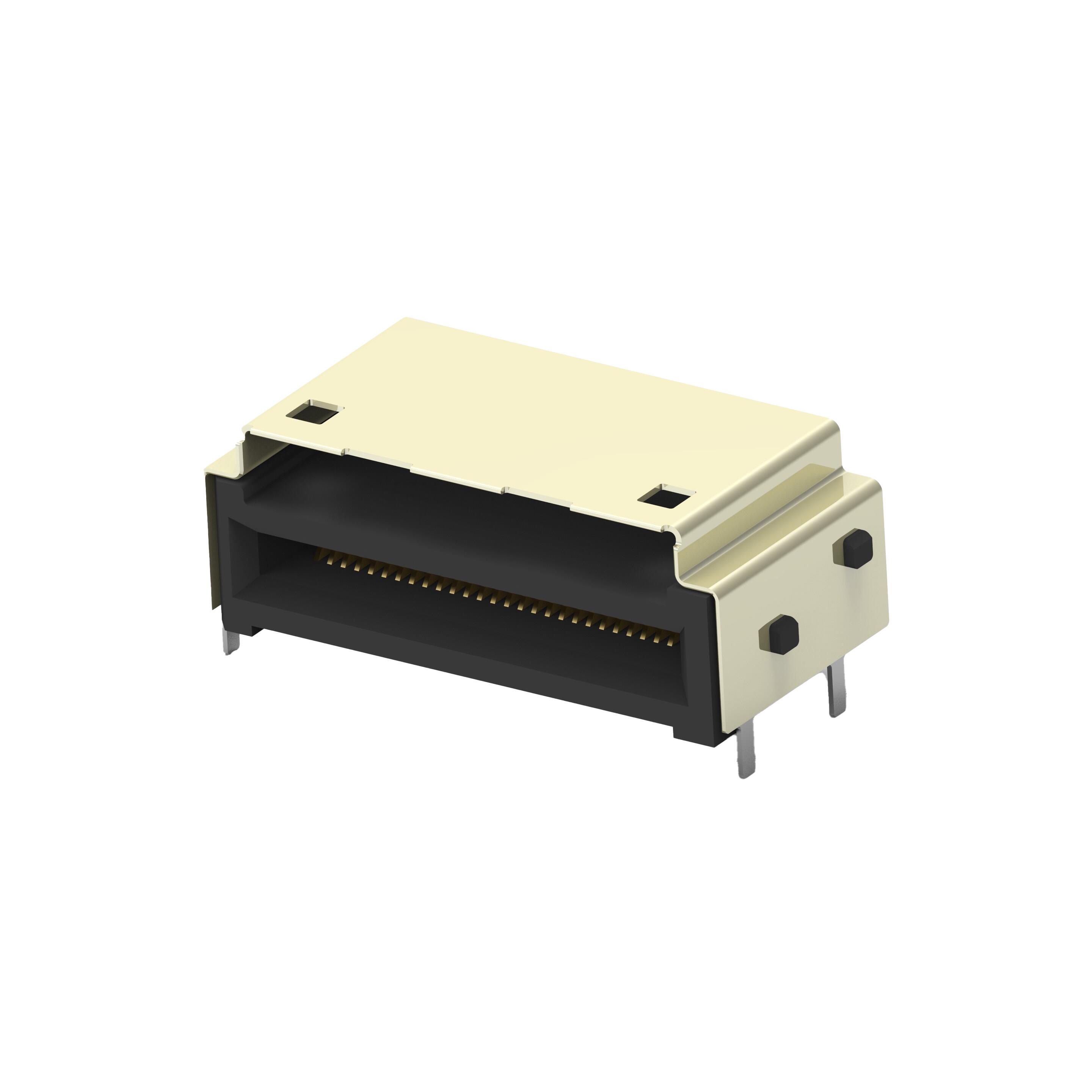

| Description: | RECEPT ASSY, RA, 56 POS, SLIVER |
| Manufacturer | TE Connectivity AMP Connectors |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 350 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity AMP Connectors" |
| Features | Board Guide, Pick and Place, Solder Retention |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 56 |
| Pitch | 0.024" (0.60mm) |
| Operating Temperature | -55°C ~ 85°C |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
| Termination | Solder |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | 28 |
| Number of Rows | 2 |
| Termination Rows | 2 |
|
