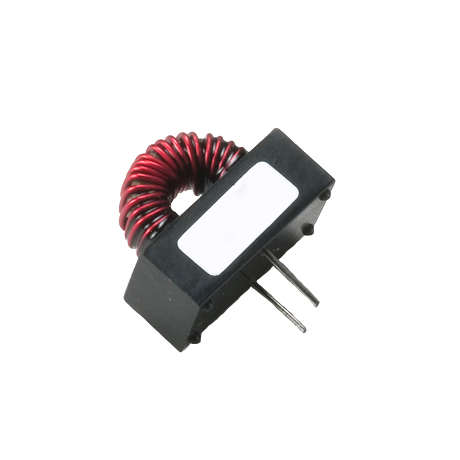

| Part number: | 059AT5003VCLF |
| Description: | VERT TOROIDAL CHOKE |
| Manufacturer | Gowanda |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±10% |
| Package / Case | Radial, Vertical |
| Size / Dimension | 1.210" L x 0.685" W (30.73mm x 17.40mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Type | Toroidal |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 160mOhm Max |
| Frequency - Self Resonant | 700kHz |
| Current - Saturation (Isat) | 3.8A |
| Inductance Frequency - Test | 1 kHz |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.312" (7.92mm) |
| Inductance | 500 µH |
| Current Rating (Amps) | 2.6 A |
|
