| Part number: | S8550 |
| Description: | TRANS PNP 25V 0.5A SOT23 |
| Manufacturer | EVVO Semi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EVVO Semi" |

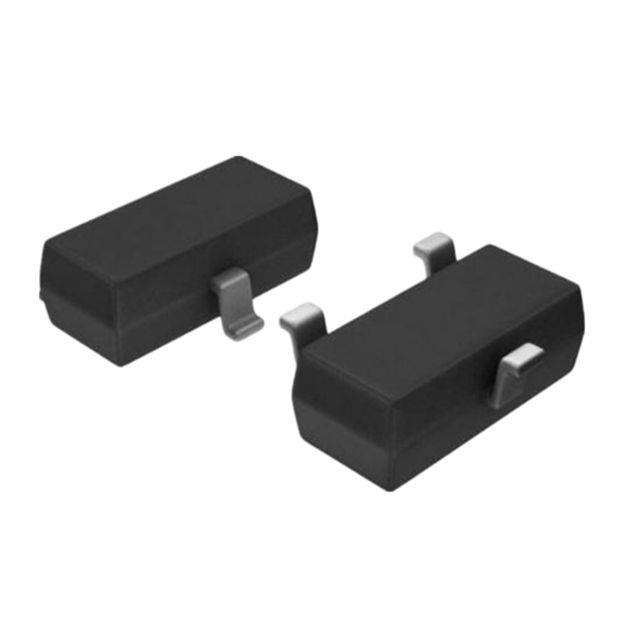

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 50mA, 1V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
| Power - Max | 300 mW |
|
