| Part number: | LMR-300-LSZH-400Ft |

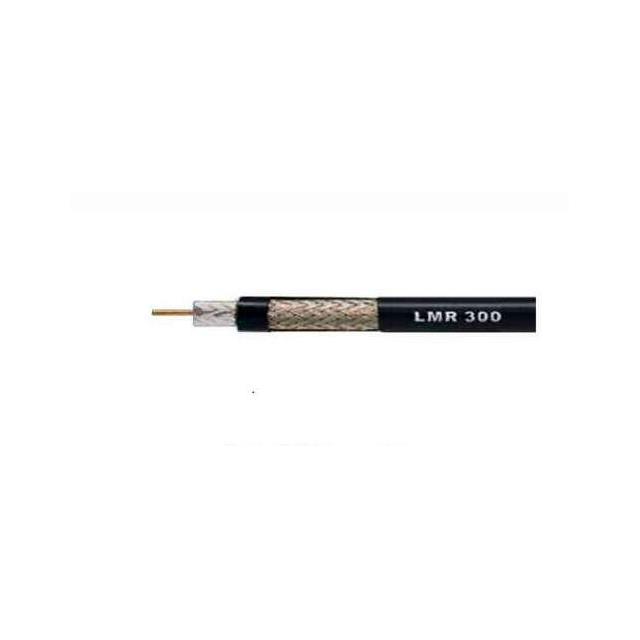

| Description: | LMR-300-LSZH Coax 400ft |
| Manufacturer | Times Microwave Systems |
| Encapsulation | Spool |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Times Microwave Systems" |
| Length | 400.0' (121.92m) |
| Jacket (Insulation) Material | Polyethylene (PE), Low Smoke Zero Halogen (LSZH) |
| Conductor Strand | Solid |
| Cable Group | LMR-300 |
| Operating Temperature | -40°C ~ 85°C |
| Cable Type | Coaxial - Riser |
| Jacket (Insulation) Diameter | 0.300" (7.62mm) |
| Dielectric Material | Foam Polyethylene (FPE) |
| Shield Coverage | 90% |
| Shield Material | Aluminum; Copper, Tinned |
| Shield Type | Braid |
| Conductor Material | Copper, Bare |
| Jacket Color | Black |
| Dielectric Diameter | 0.190" (4.83mm) |
| VoP, Velocity of Propagation | 84 |
| Impedance | 50 Ohms |
|
