| Part number: | PE9667 |

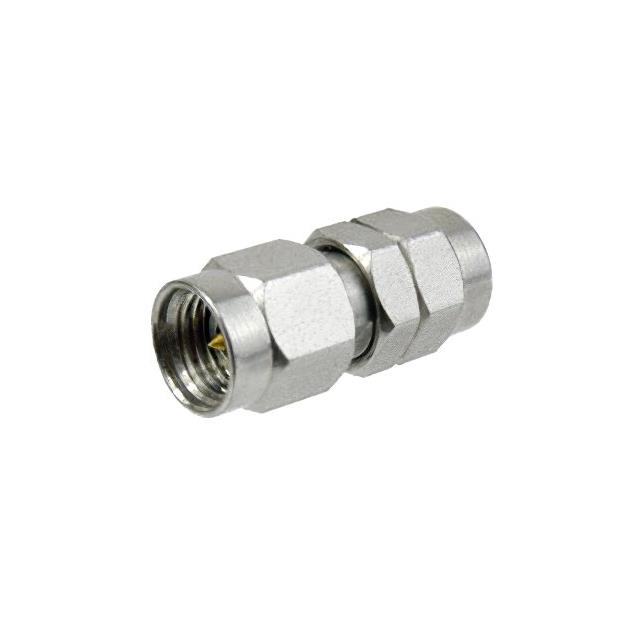

| Description: | 2.92mm Male to 1.85mm Male Adapt |
| Manufacturer | Pasternack |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Pasternack" |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | 2.92mm (OS-2.9) Plug, Male Pin |
| Convert To (Adapter End) | 1.85mm Plug, Male Pin |
| Operating Temperature | -55°C ~ 100°C |
| Insertion Loss | 0.32dB |
| Fastening Type | Threaded, Threaded |
| Dielectric Material | Polyphenylene Oxide (PPO) |
| Adapter Series | 1.85mm to 2.92mm |
| Adapter Type | Plug to Plug |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Body Material | Stainless Steel |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Body Finish | Passivated |
| Center Contact Plating | Gold |
| Frequency - Max | 40 GHz |
|
