| Part number: | ORD 229/20-25 AT |

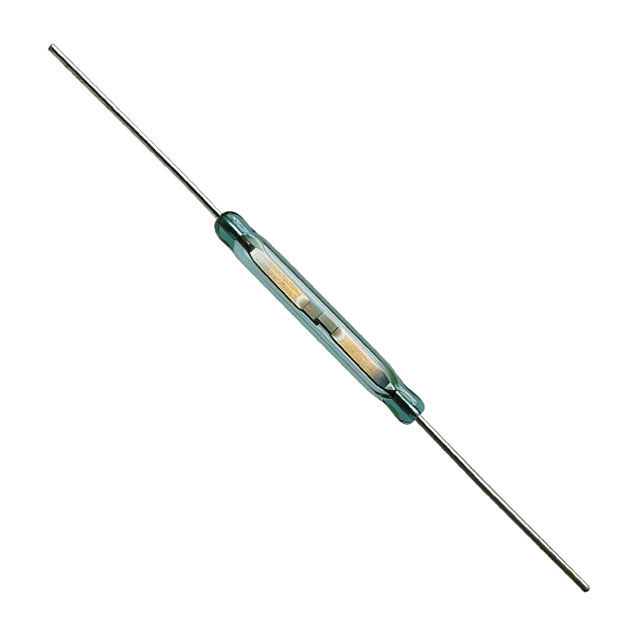

| Description: | SWITCH REED SPST-NO 500MA 300V |
| Manufacturer | Standex Electronics |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Standex Electronics" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Termination Style | Axial |
| Length - Overall | 2.181" (55.40mm) |
| Power - Rated | 50W |
| Current - Switching | 500mA (AC), 700mA (DC) |
| Voltage - Switching DC | 350 V |
| Operate Time | 0.6 ms |
| Release Time | 0.05 ms |
| Size - Body | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) |
| Operate Range | 20 ~ 25AT |
| Current - Carry | 2.5A (AC/DC) |
| Voltage - Switching AC | 300 V |
| Capacitance | 0.5 pF |
|
