| Part number: | 7443330150 |

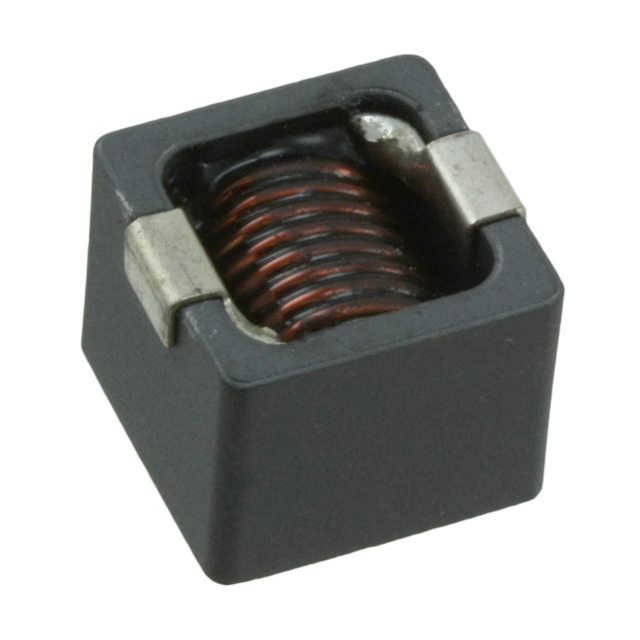

| Description: | FIXED IND 1.5UH 18A 4 MOHM SMD |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.429" L x 0.394" W (10.90mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 4mOhm Max |
| Frequency - Self Resonant | 78MHz |
| Current - Saturation (Isat) | 27A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.382" (9.70mm) |
| Inductance | 1.5 µH |
| Current Rating (Amps) | 18 A |
|
