| Part number: | 691101810004 |

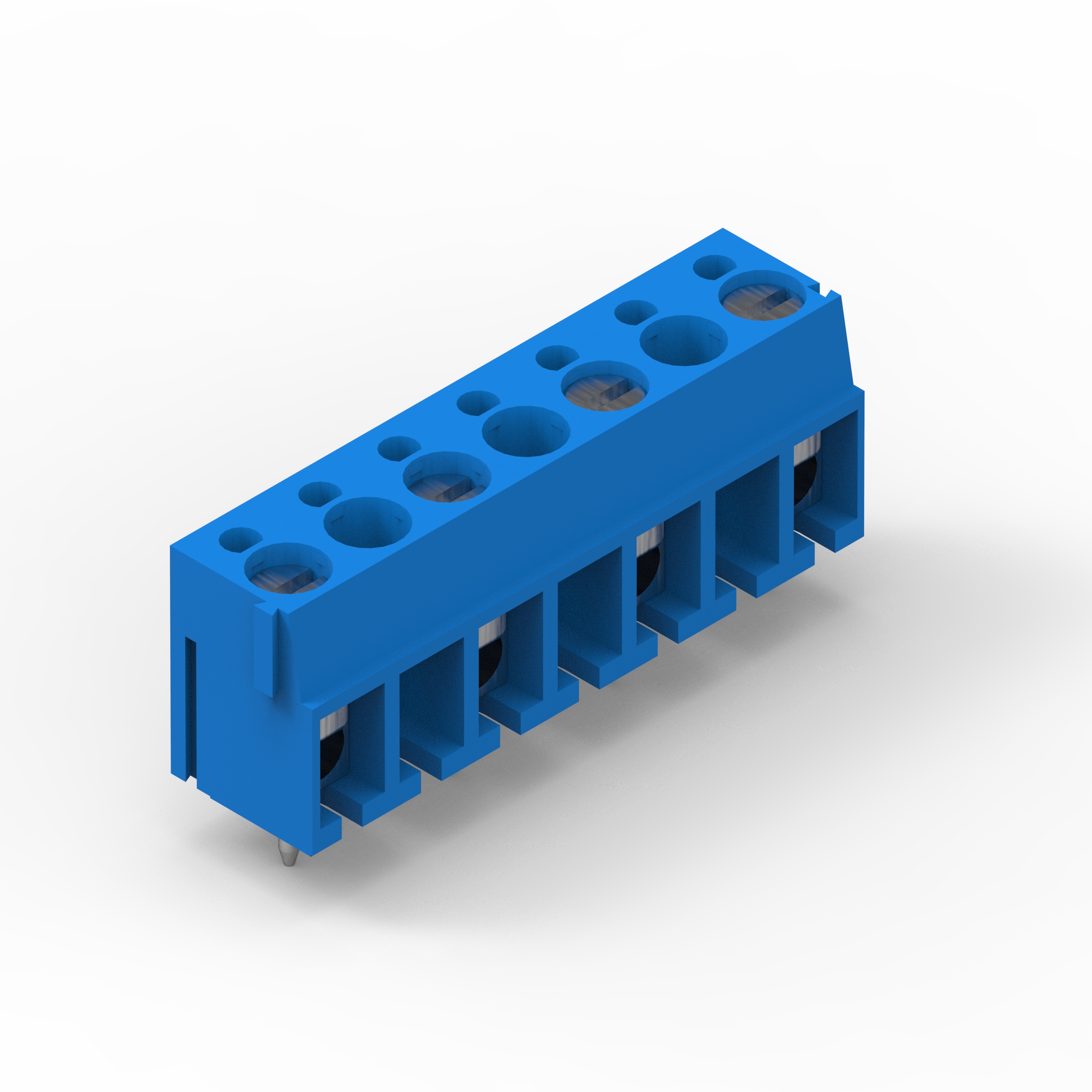

| Description: | WR-TBL TERMINAL BLOCK - WIRE PRO |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Box |
| Quantity | 170 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Features | Interlocking (Side) |
| Color | Blue |
| Mounting Type | Through Hole |
| Wire Gauge | 14-26 AWG |
| Pitch | 0.394" (10.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 4 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.3 Nm (2.6 Lb-In) |
| Screw Thread | M3 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Current | 16 A |
| Number of Levels | 1 |
| Voltage | 250 V |
|
