| Part number: | 691410120003 |

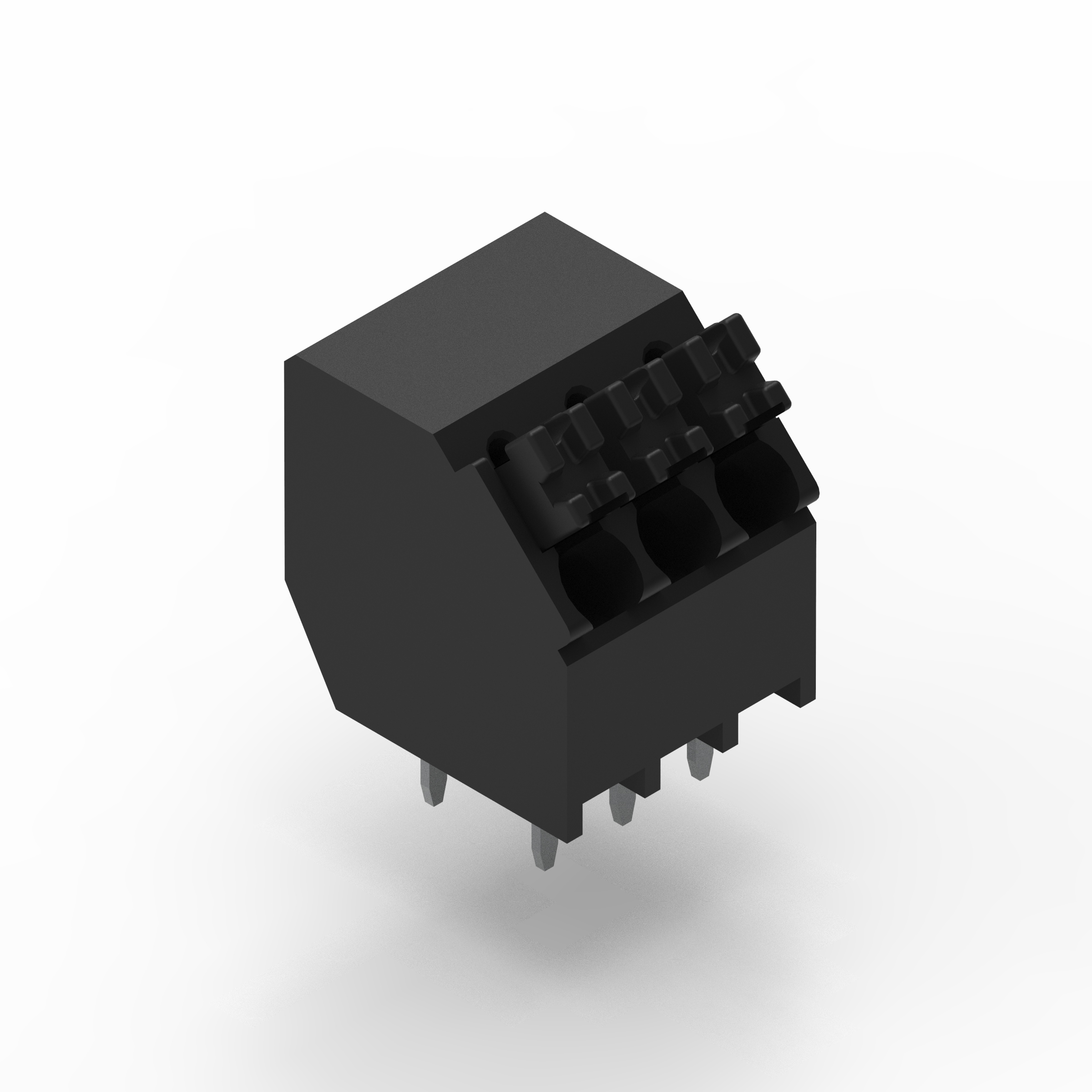

| Description: | WR-TBL TERMINAL BLOCK - SCREWLES |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Box |
| Quantity | 480 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Features | Push Button Actuated |
| Color | Black |
| Mounting Type | Through Hole |
| Wire Gauge | 18-24 AWG |
| Pitch | 0.138" (3.50mm) |
| Operating Temperature | -40°C ~ 110°C |
| Mating Orientation | 45° (135°) Angle with Board |
| Positions Per Level | 3 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | Steel, Stainless |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Current | 7 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
