| Part number: | IXBH32N300 |
| Description: | IGBT 3000V 80A 400W TO247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |

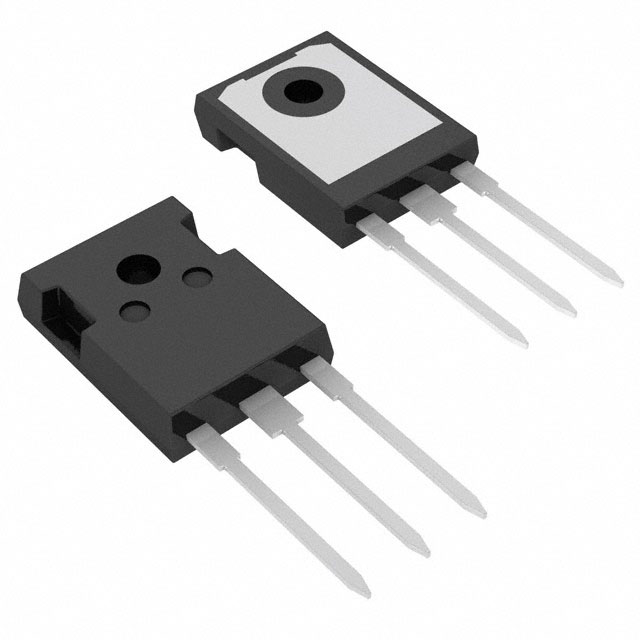

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 1.5 µs |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 32A |
| Supplier Device Package | TO-247AD |
| Gate Charge | 142 nC |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V |
| Current - Collector Pulsed (Icm) | 280 A |
| Power - Max | 400 W |
|
