| Part number: | SLS120J080A-ISBTH |

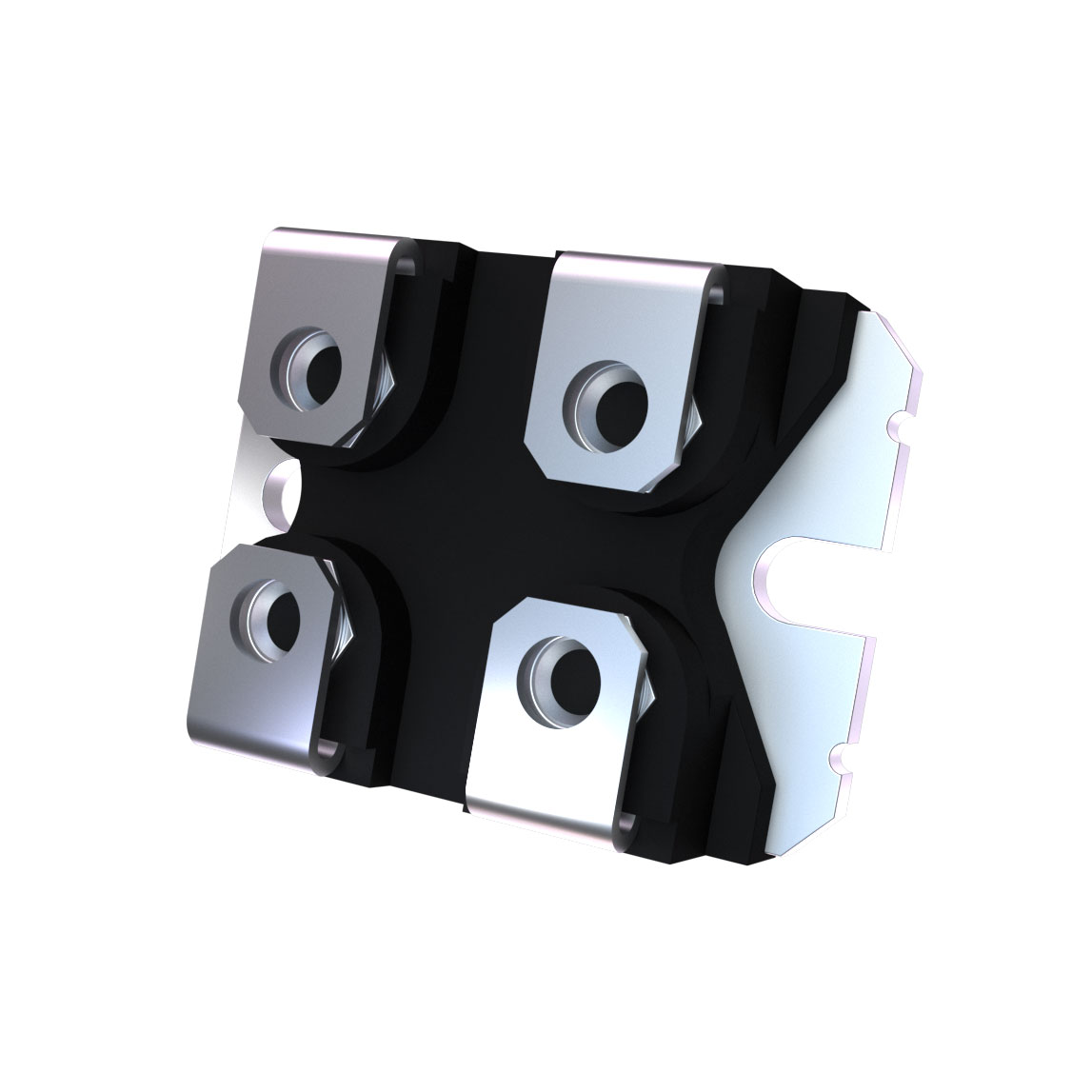

| Description: | DIODE MODULE 1200V-80A SOT-227 |
| Manufacturer | Luminus Devices |
| Encapsulation | Tube |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Luminus Devices" |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 80A |
| Supplier Device Package | SOT-227 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 80 A |
| Current - Reverse Leakage @ Vr | 240 µA @ 1.2 kV |
|
