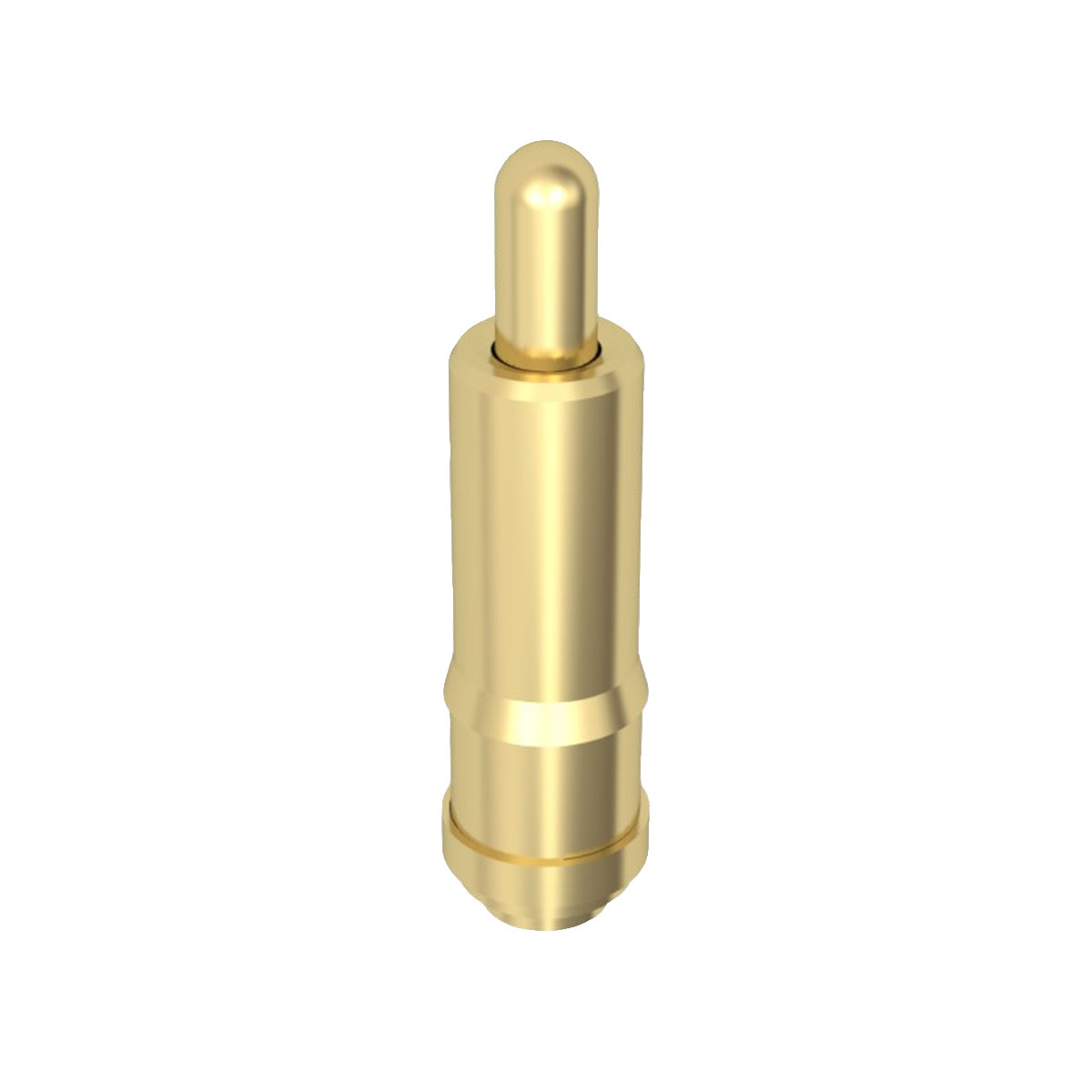

| Part number: | 0950-0-15-20-64-14-11-0 |
| Description: | LOW PROFILE SMT SPRING-LOADED PI |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Gold |
| Current Rating (Amps) | 5.6A |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Brass Alloy |
| Mating Cycles | 1000000 |
| Maximum Working Height | 0.126" (3.20mm) |
| Recommended Working Height | 0.106" (2.69mm) |
| Minimum Working Height | 0.086" (2.18mm) |
| Pad Layout Dimension | Circular - 0.043" (1.09mm) |
| Plunger Size | 0.019" (0.48mm) Dia |
| Operating Force - Initial | 12gf |
| Operating Force - Mid Compression | 50gf |
|
