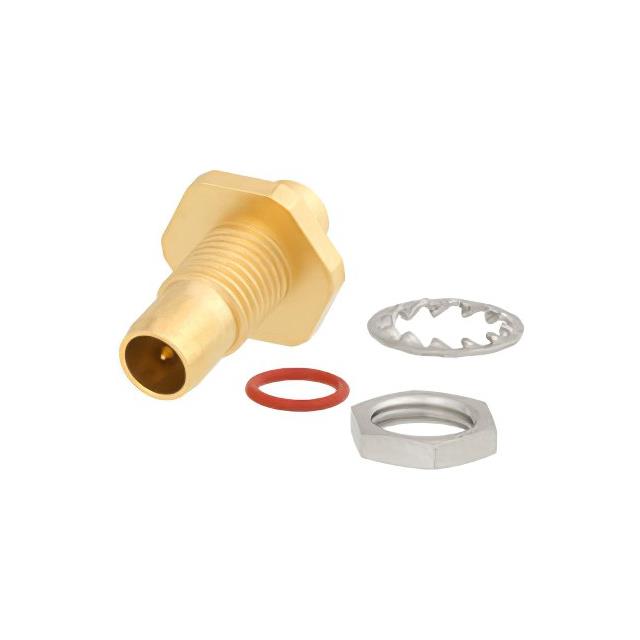

| Part number: | PE45313 |
| Description: | BMA Plug Bulkhead Mount Slide-On |
| Manufacturer | Pasternack |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Pasternack" |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-402 |
| Operating Temperature | -65°C ~ 125°C |
| Insertion Loss | 0.14dB |
| Fastening Type | Threaded |
| Connector Style | BMA |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Stainless Steel |
| Housing Color | Gold |
| Mating Cycles | 1000 |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Frequency - Max | 22 GHz |
| Number of Ports | 1 |
| Voltage Rating | 500 V |
|
