| Part number: | PE45710 |

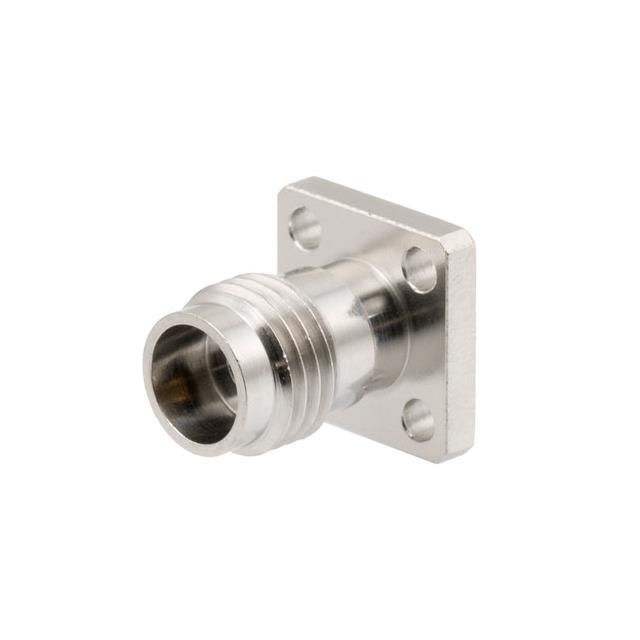

| Description: | 2.4mm Female Field Replaceable C |
| Manufacturer | Pasternack |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Pasternack" |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount; Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| Fastening Type | Threaded |
| Connector Style | 2.4mm (APC-2.4, OS-50) |
| Dielectric Material | Polyetherimide (PEI) |
| Mounting Feature | Flange |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Shield Termination | Screw |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Frequency - Max | 50 GHz |
| Number of Ports | 1 |
|
