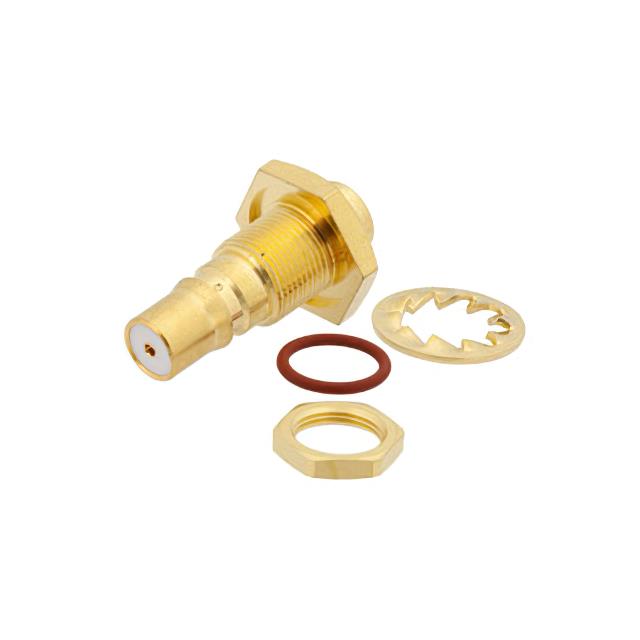

| Part number: | PE44500 |
| Description: | QMA Female Bulkhead Mount Connec |
| Manufacturer | Pasternack |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Pasternack" |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-402 (.141" Semi Rigid) |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Snap-On |
| Connector Style | QMA |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 100 |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Voltage Rating | 335 V |
|
