| Part number: | PE45297 |

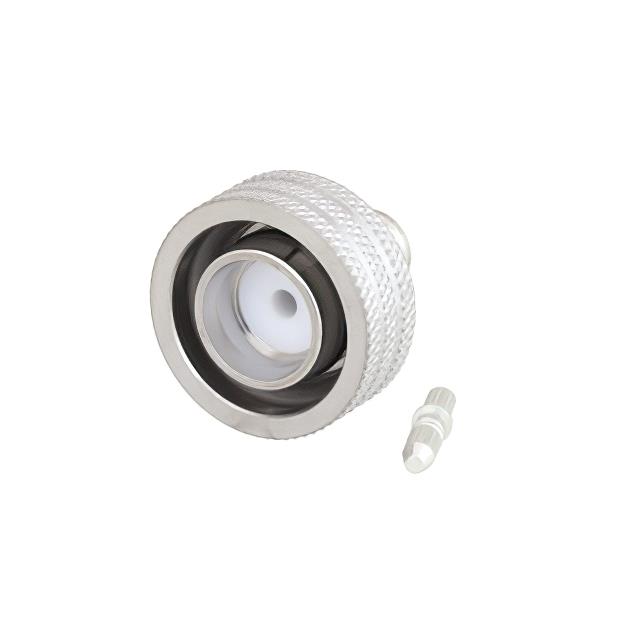

| Description: | 4.3-10 Male Low PIM Push-On Conn |
| Manufacturer | Pasternack |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Pasternack" |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C ~ 90°C |
| Insertion Loss | 0.13dB |
| Fastening Type | Threaded |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Connector Style | 4.3/10 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 100 |
| Shield Termination | Solder |
| Center Contact Material | Brass |
| Body Finish | Tri-Metal |
| Center Contact Plating | Silver |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Voltage Rating | 850 V |
|
