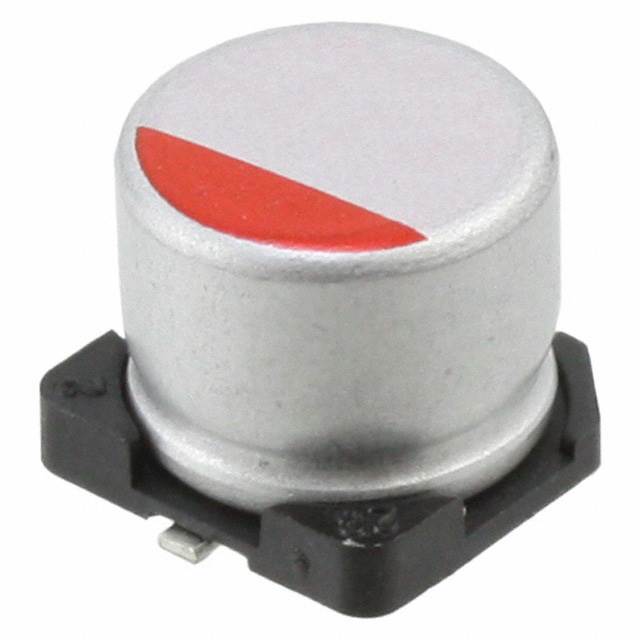

| Part number: | RHS0J391MCN1GS |
| Description: | CAP ALUM POLY 390UF 20% 6.3V SMD |
| Manufacturer | Nichicon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Height - Seated (Max) | 0.264" (6.70mm) |
| Capacitance | 390 µF |
| Voltage - Rated | 6.3 V |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
|
