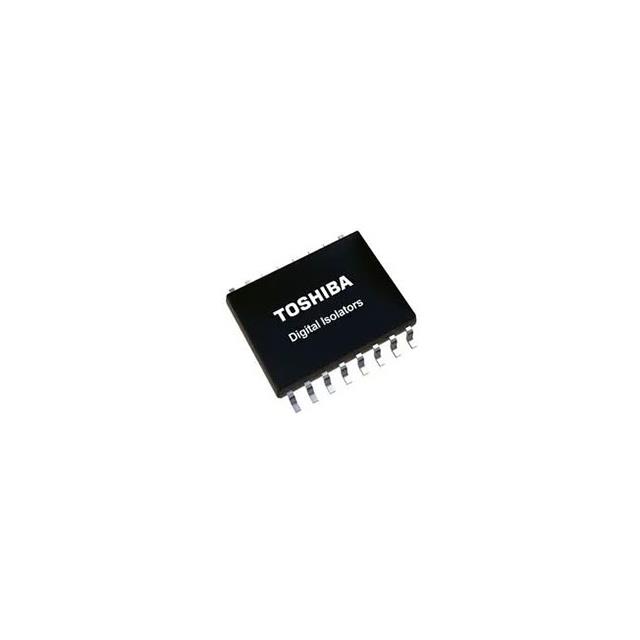

| Part number: | DCL542L01(T,E(O |
| Description: | 4-CH (4:0) HIGH SPEED DIGITAL IS |
| Manufacturer | Toshiba Electronic Devices and Storage Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Toshiba Electronic Devices and Storage Corporation" |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 110°C |
| Voltage - Supply | 2.25V ~ 5.5V |
| Data Rate | 150Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 2/2 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 0.9ns, 0.9ns |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 18.3ns, 18.3ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 2.8ns |
| Number of Channels | 4 |
|
