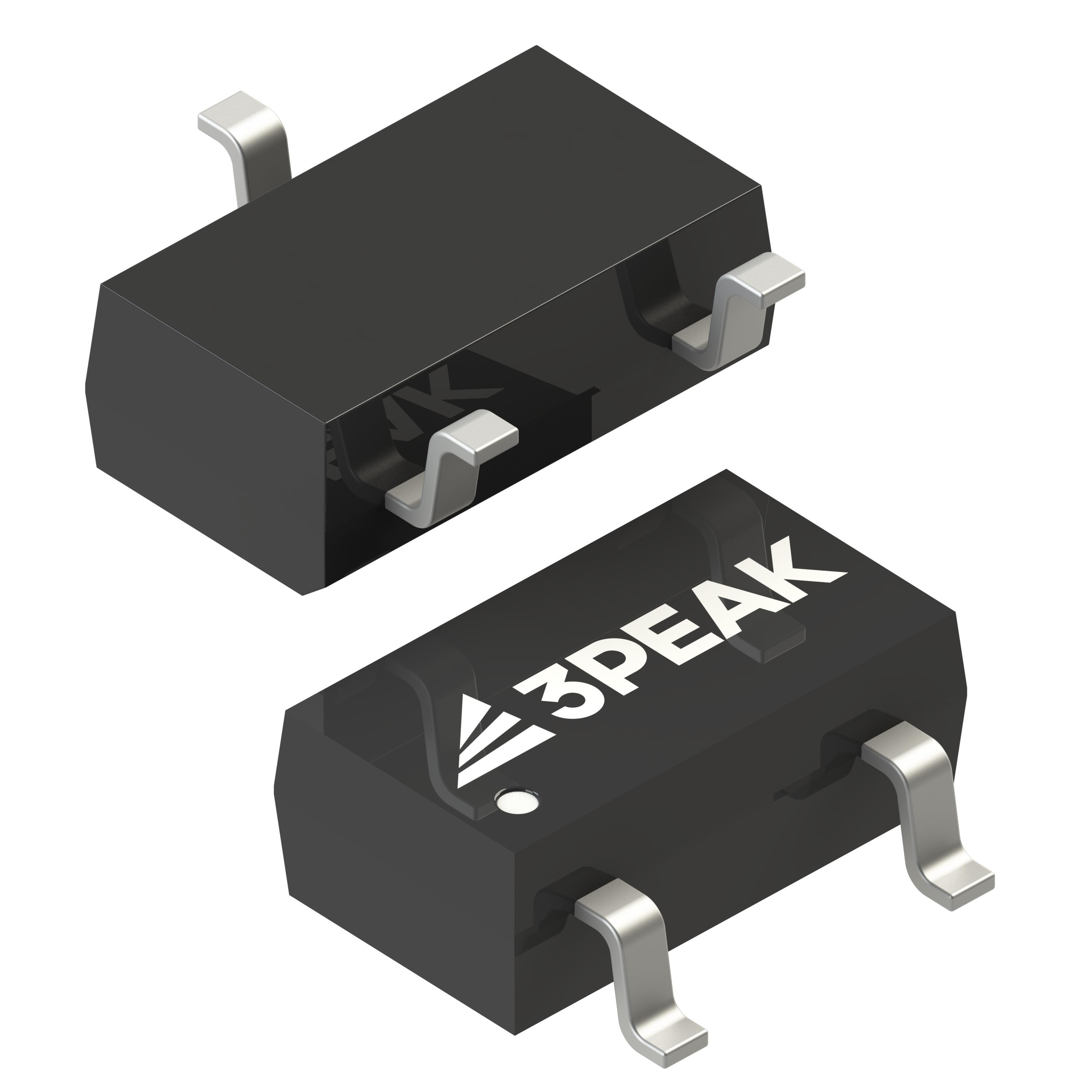

| Part number: | TPL810F50-3TR |
| Description: | LINEAR VOLTAGE REGULATOR IC FIXE |
| Manufacturer | 3PEAK |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3PEAK" |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 180mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 µA |
| Voltage - Input (Max) | 24V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Current Limit |
| PSRR | 75dB ~ 65dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | 0.8V @ 180mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
|
