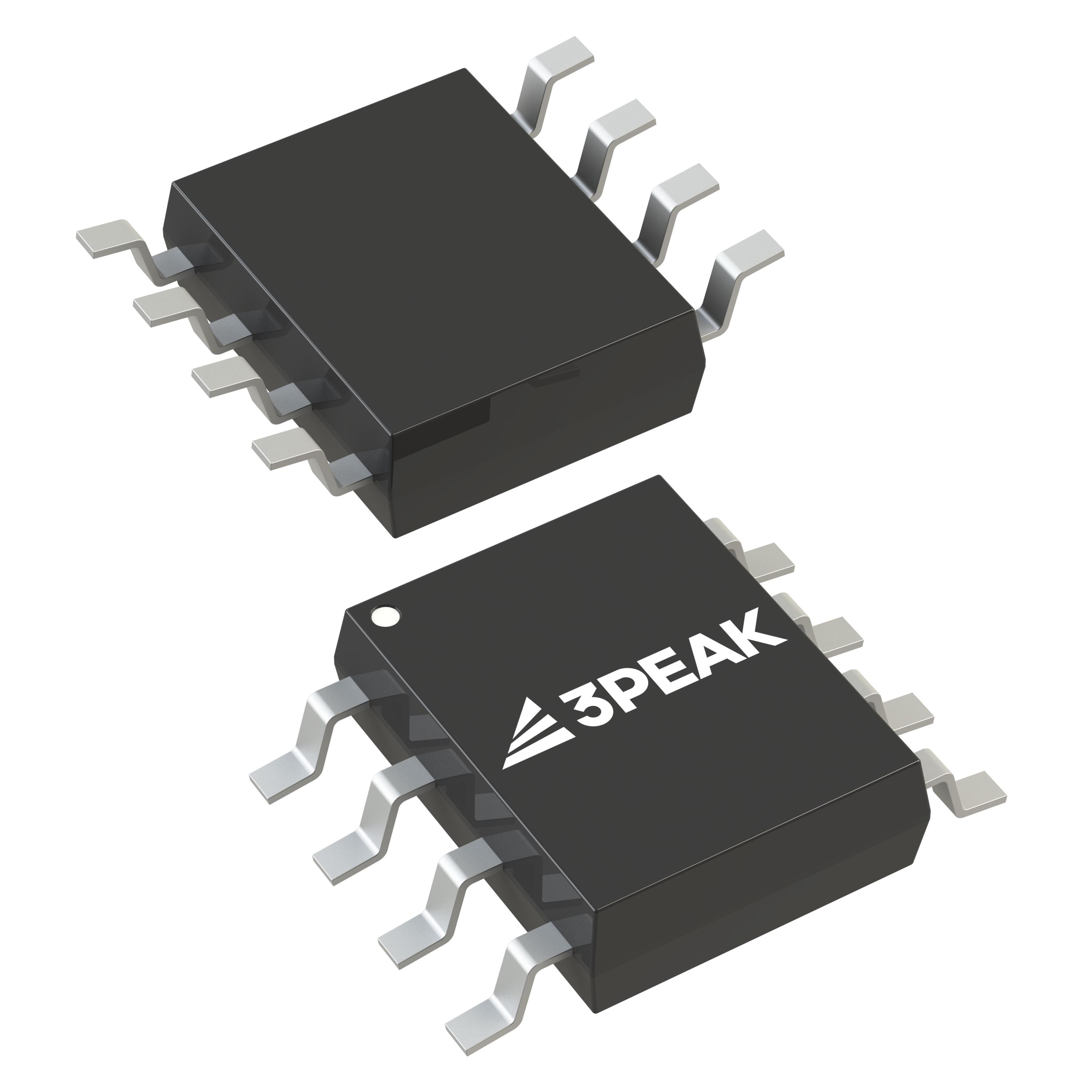

| Part number: | TPT7720-SOAR |
| Description: | GENERAL PURPOSE DIGITAL ISOLATOR |
| Manufacturer | 3PEAK |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3PEAK" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.25V ~ 5.5V |
| Data Rate | 150Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 2/0 |
| Supplier Device Package | 8-SOP |
| Rise / Fall Time (Typ) | 0.7ns, 0.7ns |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 18ns, 18ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 5ns |
| Number of Channels | 2 |
|
