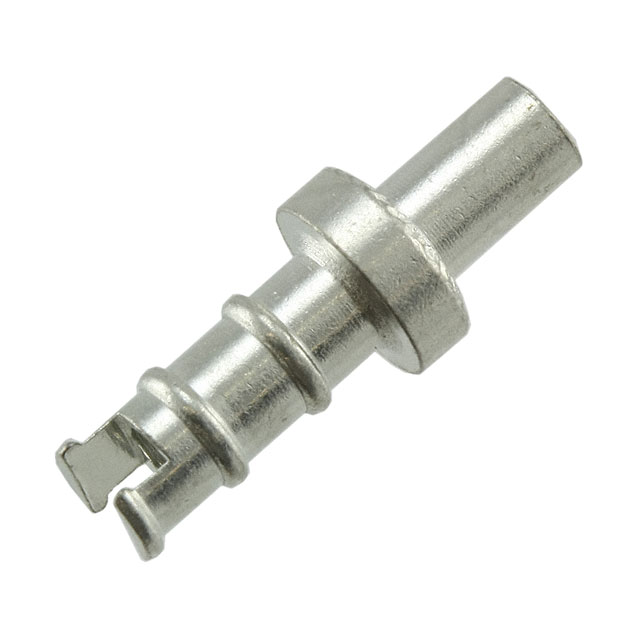

| Part number: | H2073Z01 |
| Description: | TERM TURRET SLOTTED L=9.12MM TIN |
| Manufacturer | Harwin |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Harwin" |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.126" (3.20mm) |
| Terminal Type | Single End, Fork |
| Flange Diameter | 0.187" (4.75mm) |
| Length - Overall | 0.515" (13.08mm) |
| Termination | Swage |
| Length - Above Board | 0.359" (9.12mm) |
| Mounting Hole Diameter | 0.105" ~ 0.109" (2.67mm ~ 2.77mm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.125" (3.18mm) |
| Number of Turrets | Triple |
| Length - Below Flange | 0.156" (3.96mm) |
| Staking Side OD | 0.100" ~ 0.105" (2.54mm ~ 2.67mm) |
| Staking Side ID | 0.067" ~ 0.070" (1.70mm ~ 1.78mm) |
|
