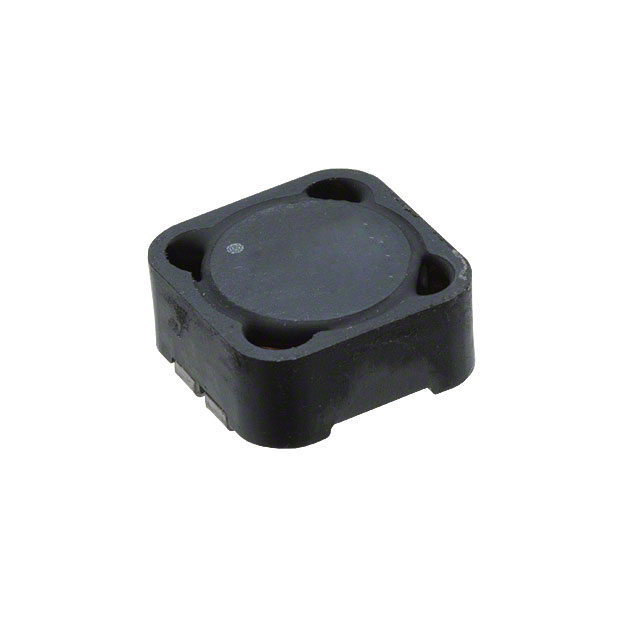

| Part number: | PF0552.105NLT |
| Description: | INDUCT ARRAY 2 COIL 1MH SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.236" (6.00mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 4 mH |
| Inductance - Connected In Parallel | 1 mH |
| Current Rating - Parallel | 650 mA |
| Current Rating - Series | 320 mA |
| Current Saturation - Parallel | 700 mA |
| Current Saturation - Series | 350 mA |
| DC Resistance (DCR) - Parallel | 1.6Ohm Max |
| DC Resistance (DCR) - Series | 6.4Ohm Max |
|
