| Part number: | P0179NL |

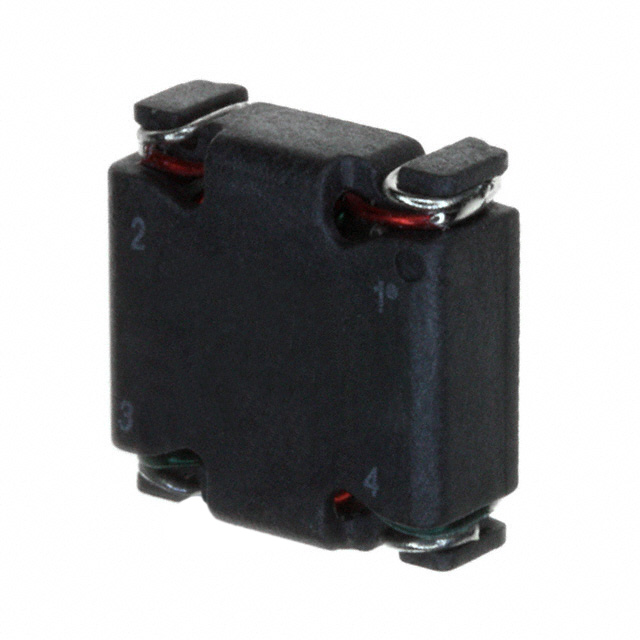

| Description: | INDUCT ARRAY 2 COIL 22.1UH SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Tolerance | ±10% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 130°C |
| Height | 0.215" (5.46mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 88.2 µH |
| Inductance - Connected In Parallel | 22.1 µH |
| Current Rating - Parallel | 2.6 A |
| Current Rating - Series | 1.3 A |
| DC Resistance (DCR) - Parallel | 66.3mOhm Max |
| DC Resistance (DCR) - Series | 266mOhm Max |
|
