| Part number: | PLV1V560MCL1TD |

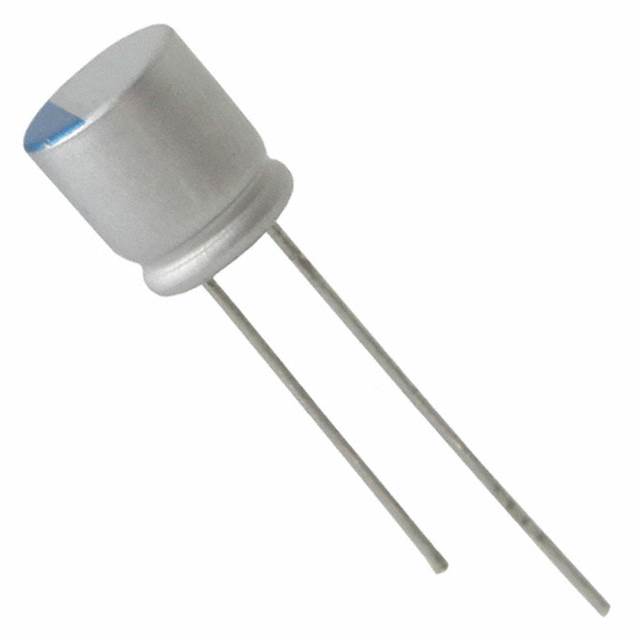

| Description: | CAP ALUM POLY 56UF 20% 35V T/H |
| Manufacturer | Nichicon |
| Encapsulation | Cut Tape (CT) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| ESR (Equivalent Series Resistance) | 29mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Capacitance | 56 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
|
