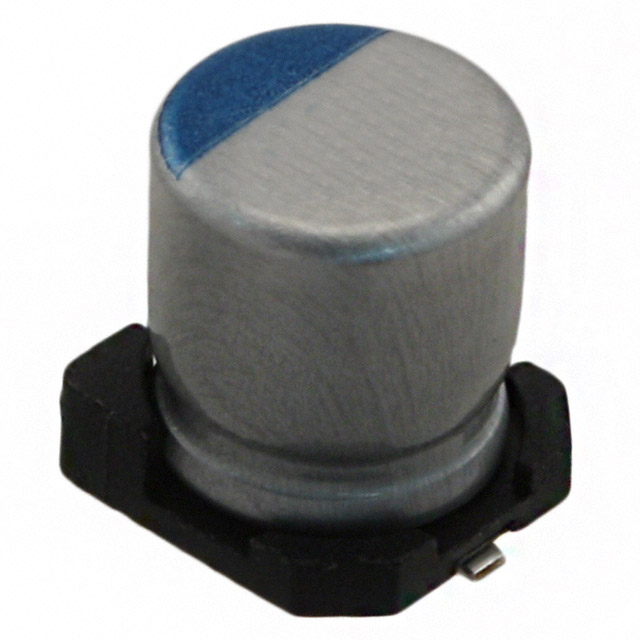

| Part number: | PCS0J470MCL1GS |
| Description: | CAP ALUM POLY 47UF 20% 6.3V SMD |
| Manufacturer | Nichicon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Capacitance | 47 µF |
| Voltage - Rated | 6.3 V |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
|
