| Part number: | AS1742G-T |
| Description: | IC SW SPST-NCX2 800MOHM 8MSOP |
| Manufacturer | OSRAM Opto Semiconductors (ams OSRAM) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "OSRAM Opto Semiconductors (ams OSRAM)" |

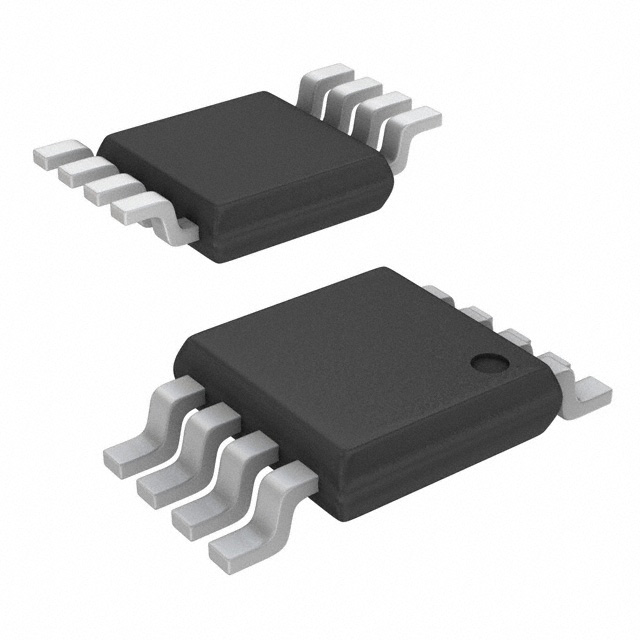

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 800mOhm |
| -3db Bandwidth | 130MHz |
| Supplier Device Package | 8-MSOP |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Charge Injection | 6pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Switch Time (Ton, Toff) (Max) | 22ns, 14ns |
| Channel Capacitance (CS(off), CD(off)) | 35pF, 35pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 2 |
|
